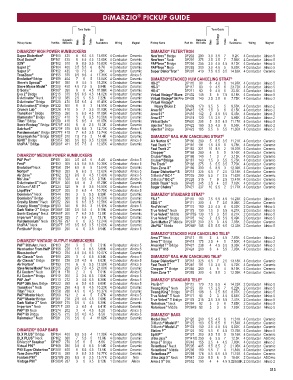

DiMARZIO PICKUP GUIDE
®

Tone Guide Tone Guide

Output in Mid-Range DC Output in Mid-Range DC
Pickup Name Part No. Millivolts Bass Treble Resistance Wiring Magnet Pickup Name Part No. Millivolts Bass Treble Resistance Wiring Magnet
DiMARZIO HIGH POWER HUMBUCKERS DiMARZIO FILTER’TRON
®
®
Super Distortion DP100 425 8 6.5 4.5 13.68K 4 Conductor Ceramic New’tron Bridge DF292 290 3.0 3.5 7 8.2K 4 Conductor Alnico 5
™
®
Dual Sound DP101 425 8 6.5 4.5 13.68K 4 Conductor Ceramic New’tron Neck DP291 275 2.5 3.5 7 7.56K 4 Conductor Alnico 5
™
®
X2N ® DP102 510 9 8.5 3.5 15.83K 4 Conductor Ceramic PAF tron Bridge DP294 255 3.5 4.5 4.5 9.13K 4 Conductor Alnico 5
®
™
Super 2 DP104 400 3.5 5.5 6 8.7K 4 Conductor Ceramic PAF tron Neck DP293 200 3.0 4.5 5 8.03K 4 Conductor Alnico 5
®
™
™
Super 3 DP152 435 10 7.5 4 25K 4 Conductor Ceramic Super Distor’Tron DP297 410 7.5 6.5 3.5 14.62K 4 Conductor Ceramic
™
™
ToneZone DP155 375 9.5 8.5 4 17.31K 4 Conductor Alnico 5
®
Evolution Bridge DP159 404 7 6 5 13.84K 4 Conductor Ceramic DiMARZIO STACKED HUM CANCELING STRAT
®
®
®
Steve‘s Special ™ DP161 390 9 4.5 5 18.21K 4 Conductor Ceramic HS-2 DP116 90 8 4.0 6 14.97K 4 Conductor Alnico 5
™
Steve Morse Model DP200 450 4.5 7.5 5 9.94K 4 Conductor Ceramic HS-3 DP117 93 9 4.5 6 23.72K 4 Conductor Alnico 5
™
™
D Sonic ™ DP207 390 6 6 4.5 11.96K 4 Conductor Ceramic HS-4 DP217 93 9 4.5 6 23.5K 4 Conductor Alnico 5
™
Evo 2 Bridge DP215 375 6.5 6.5 4.5 14.02K 4 Conductor Ceramic Virtual Vintage Blues DP402 145 3 5 7.5 8.18K 4 Conductor Alnico 5
™
®
D Activator Neck DP219 385 2.5 5 5.5 7.22K 4 Conductor Ceramic Virtual Vintage 54 Pro DP408 140 2.5 3.5 6 7.75K 4 Conductor Alnico 2
™
®
D Activator Bridge DP220 470 5.5 6.5 4 11.41K 4 Conductor Ceramic Virtual Vintage ®
™
D Activator-X Bridge DP222 500 8 8 3 14.51K 4 Conductor Ceramic Heavy Blues 2 DP409 170 3.5 5 5 8.53K 4 Conductor Alnico 2
™
Crunch Lab DP228 410 5 7 3.5 11.03K 4 Conductor Ceramic Area 58 DP415 125 1.5 3 6 6.15K 4 Conductor Alnico 2
™
™
Transition Bridge DP255 390 5 6.5 4.5 11.05K 4 Conductor Ceramic Area 61 DP416 142 2 3.5 5.5 6.43K 4 Conductor Alnico 2
™
™
Illuminator Bridge DP257 410 5 6 3.5 10.56K 4 Conductor Ceramic Area 67 DP419 120 1.5 2.5 7 5.86K 4 Conductor Alnico 2
™
™
Titan Bridge DP259 418 5 6.5 4 11.07K 4 Conductor Ceramic Virtual Solo DP420 205 5 5.5 4.5 11.17K 4 Conductor Alnico 5
™
™
Sonic Ecstasy Bridge DP270F 420 8 8 2.5 15.3K 4 Conductor Ceramic Injector Neck DP422 160 3.5 4.5 6 8.56K 4 Conductor Alnico 2
™
™
Satchur8 DP273F 375 6.5 6.5 3 12.73K 4 Conductor Alnico 8 Injector Bridge DP423 185 5.5 6 5.5 11.35K 4 Conductor Alnico 2
™
™
Pandemonium Bridge DP277F 415 7 6.5 3.5 13.74K 4 Conductor Ceramic
™
Dreamcatcher Bridge DP282F 370 7.5 7.5 3 14.4K 4 Conductor Ceramic DiMARZIO RAIL HUM CANCELING STRAT ®
™
®
IGNO Bridge DP285F 385 6.5 6.5 3.5 12.69K 4 Conductor Alnico 8 Air Norton S DP180 280 5 6.5 3.5 11.21K 4 Conductor Ceramic
™
™
UtoPIA Bridge DP289F 411 6.5 7.5 3 12.95K 4 Conductor Ceramic Fast Track 1 DP181 191 1.5 3.5 6 5.78K 4 Conductor Ceramic
™
™
Fast Track 2 DP182 321 10 9.5 2 18.07K 4 Conductor Ceramic
™
™
DiMARZIO MEDIUM POWER HUMBUCKERS Chopper DP184 260 4 5 5 9.16K 4 Conductor Ceramic
®
3
7
1
DP186 140
3.13K 4 Conductor Ceramic
Cruiser Neck
®
PAF Pro DP151 300 3.5 4.5 6 8.4K 4 Conductor Alnico 5 Cruiser Bridge DP187 143 1.5 3 5.5 5.75K 4 Conductor Ceramic
®
®
Fred DP153 305 4.5 5.5 5.5 10.38K 4 Conductor Alnico 5 Pro Track DP188 275 3 5.5 3.5 7.70K 4 Conductor Ceramic
®
™
Evolution Neck DP158 294 6.5 6 5 13.04K 4 Conductor Ceramic Tone Zone S DP189 300 6 8.5 3 12.39K 4 Conductor Ceramic
®
™
Norton DP160 352 6 6.5 5 12.62K 4 Conductor Alnico 5 Super Distortion S DP218 325 6.5 7 2.5 13.18K 4 Conductor Ceramic
®
®
Air Zone DP192 323 9.5 8 4.5 17.49K 4 Conductor Alnico 5 DiMarzio BC-1 DP225 290 5.5 7 2.5 11.62K 4 Conductor Ceramic
™
™
®
Mo’ Joe DP216 320 4 5.5 4.5 9.76K 4 Conductor Alnico 5 DiMarzio BC-2 DP226 315 7 9 2.5 13.47K 4 Conductor Ceramic
™
™
®
D Activator-X Neck DP221 300 5.5 8 3 11.29K 4 Conductor Ceramic Satch Track Neck DP425 245 2.5 4 3.5 7.02K 4 Conductor Ceramic
™
™
DiMarzio AT-1 DP224 320 9 8 3.5 16.50K 4 Conductor Alnico 5 Sugar Chakra DP427 337 10 9.5 2 21.77K 4 Conductor Ceramic
™
®
™
LiquiFire DP227 300 5 6.5 4 10.75K 4 Conductor Alnico 5
™
Dominion Neck DP244 290 3 5 5.5 8.39K 4 Conductor Ceramic DiMARZIO STANDARD STRAT ®
™
®
Dominion Bridge DP245 360 9 8.5 3.5 16.50K 4 Conductor Ceramic FS-1 DP110 160 7.5 5.5 4.5 14.23K 2 Conductor Alnico 5
™
™
Gravity Storm Neck DP252 290 6 6.5 3.5 12.56K 4 Conductor Ceramic SDS-1 DP111 200 4 7 3.5 9.36K 2 Conductor Ceramic
™
™
Gravity Storm Bridge DP253 340 8 8.5 3 15.19K 4 Conductor Alnico 5 Red Velvet DP174 180 3.5 4.5 6 8.52K 2 Conductor Alnico 5
™
™
Dark Matter 2 Bridge DP268F 330 3.5 5.5 4 9.19K 4 Conductor Ceramic True Velvet Neck DP175 130 1.5 3 5.5 6.21K 2 Conductor Alnico 5
™
™
Sonic Ecstasy Neck DP269F 300 7 6.5 3.5 13.8K 4 Conductor Ceramic True Velvet Middle DP175S 130 1.5 3 5.5 6.21K 2 Conductor Alnico 5
™
™
Imperium Bridge DP272F 325 7 6.5 3 13.7K 4 Conductor Ceramic True Velvet Bridge DP176 142 2 3.5 5.5 6.49K 2 Conductor Alnico 5
™
™
Pandemonium Neck DP276F 297 6 6 3.5 12.24K 4 Conductor Ceramic Dark Matter 2 Middle DP267F 200 2.5 3 4.5 7.33K 2 Conductor Ceramic
™
™
UtoPIA Neck DP287F 315 6.5 6.5 3.5 12.68K 4 Conductor Ceramic UtoPIA Middle DP288F 185 6.5 5.5 6.5 13.32K 2 Conductor Alnico 5
™
™
Fortitude Bridge DP290 290 4 6 3.5 9.54K 4 Conductor Alnico 5
®
DiMARZIO STACKED HUM CANCELING TELE
®
®
4 4.5 7.83K 4 Conductor Alnico 2
3
™
DiMARZIO VINTAGE OUTPUT HUMBUCKERS Area T Neck DP417 95 2.5 4 5 7.50K 4 Conductor Alnico 2
®
Area T Bridge
DP418 175
™
PAF 36th Ann. Neck DP103 250 3 5 5 7.31K 4 Conductor Alnico 5 Area Hot T Bridge DP421 238 4 4.5 3.5 9.33K 4 Conductor Alnico 2
™
™
Humbucker From Hell DP156 226 1.5 4 8.5 5.89K 4 Conductor Alnico 5 Area T 615 DP424 200 3 4 5.5 7.93K 4 Conductor Alnico 2
®
™
Bluesbucker DP163 224 4.5 5.5 5.5 10.07K 4 Conductor Ceramic
®
Air Classic Neck DP190 206 3 4 6.5 8.34K 4 Conductor Alnico 5 DiMARZIO RAIL HUM CANCELING TELE ®
®
™
Air Classic Bridge DP191 226 3.5 4.5 6 8.62K 4 Conductor Alnico 5 Super Distortion T DP318 325 6.5 7 2.5 13.18K 4 Conductor Ceramic
™
®
Air Norton DP193 270 6 6 5.5 12.58K 4 Conductor Alnico 5 Fast Track T DP381 191 1.5 3.5 6 5.72K 4 Conductor Ceramic
®
™
Steve Morse Model Neck DP205 250 9.5 7.5 4.5 21.00K 4 Conductor Ceramic Chopper T Bridge DP384 260 4 5 4 9.19K 4 Conductor Ceramic
™

™
EJ Custom Neck DP211 178 2 3 9 7.01K 4 Conductor Alnico 5 Tone Zone T DP389 300 6 8.5 3 12.39K 4 Conductor Ceramic
™
™
EJ Custom Bridge DP212 200 3 3.5 8.5 7.85K 4 Conductor Alnico 5
™
PAF Joe ® DP213 272 3 4.5 6.5 8.26K 4 Conductor Alnico 5 DiMARZIO STANDARD TELE ®
®
PAF 36th Ann. Bridge DP223 285 4 5.5 4.5 8.60K 4 Conductor Alnico 5 Pre B-1 DP112 170 7.5 5.5 4 14.23K 2 Conductor Alnico 5

®
™
Transition Neck DP254 258 4.5 6 4.5 10.23K 4 Conductor Ceramic Twang King Neck DP172 89 1.5 2.5 7 6.22K 2 Conductor Alnico 5
™
™
Titan Neck DP258 280 4.5 6 4.5 10.37K 4 Conductor Ceramic Twang King Bridge DP173 198 3 3.5 6.5 8.07K 2 Conductor Alnico 5
™
™
PAF Master Neck DP260 193 2 4 5 7.37K 4 Conductor Alnico 5 True Velvet T Neck DP177 95 2 3 4.5 6.64K 2 Conductor Alnico 5
®
™
PAF Master Bridge DP261 278 2.5 4.5 4.5 7.69K 4 Conductor Alnico 4 True Velvet T Bridge DP178 215 2.5 3.5 5.5 7.41K 2 Conductor Alnico 5
®
™
Dark Matter 2 Neck DP266F 275 3.5 5 4.5 8.29K 4 Conductor Ceramic Notorious Neck DP284 92 3 3 6 7.85K 2 Conductor Alnico 5
™
™
Imperium Neck DP271F 325 3 4.5 4 8.41K 4 Conductor Ceramic Notorious Middle DP284S 92 3 3 6 7.85K 2 Conductor Alnico 5
™
™
PAF 59 Neck DP274 202 3 4 4.5 8.2K 1 Conductor Alnico 5
®
PAF 59 Bridge DP275 215 3.5 4.5 4.5 8.5K 1 Conductor Alnico 5 DiMARZIO BASS
®
®
Rainmaker Neck DP281 275 5.5 6 4 11.62K 4 Conductor Ceramic Model One DP120 200 5.5 4.5 6 11.31K 4 Conductor Ceramic
™
™
DiMarzio Model P DP122 163 5.5 6.5 6 11.54K 4 Conductor Ceramic
®
™
®
™
DiMARZIO SOAP BARS DiMarzio Model J DP123 150 2.5 4.5 5.5 6.82K 4 Conductor Ceramic
®
Sixties P
DP124 162
5.5 6 4.5 13.76K 4 Conductor Alnico 5
™
DLX PLUS Bridge DP154 400 9.5 5.5 4 17.28K 4 Conductor Ceramic Split P DP127 250 9.5 7.5 5 19.16K 4 Conductor Ceramic
™
™
DLX PLUS Neck DP162 380 7 5.5 5 13.8K 4 Conductor Ceramic Ultra Jazz DP147/8 250 6 5.5 7 12.3K 4 Conductor A5/Crmc
™
™
DiMarzio Soapbar DP167 270 3.5 6 5 8.6K 2 Conductor Ceramic Area J Bridge DP248 155 2.5 4 4.5 7.80K 4 Conductor Alnico 2
™
®
™
Virtual P90 DP169 280 3.5 6 5.5 9.14K 4 Conductor Ceramic Relentless Neck DP295 405 9.5 8.5 2 21.06K 4 Conductor Ceramic
™
™
P90 Super Distortion DP209 400 8 6.5 4.5 13.5K 4 Conductor Ceramic Relentless Middle DP296 180 5.5 7 4 11.84K 4 Conductor Ceramic
™
™
Tone Zone P90 DP210 385 9 8.5 3.5 16.77K 4 Conductor Ceramic Relentless P DP299 178 5.5 6.5 4.5 11.74K 4 Conductor Ceramic
™
™
Fantom P90 DP278/9 285 6.5 6 3.5 13.77K 2 Conductor Neo Ultra Jazz 5 Neck DP547 230 8.5 6 5 16.6K 2 Conductor A5/Crmc
™
™
Vintage P90 DP280/6 287 3 6 3.5 8.12K 1 Conductor Alnico Area J 5 Set DP552 150 4 4 4.5 9.32/9.56K 2 Conductor Alnico 2
™
™
313
