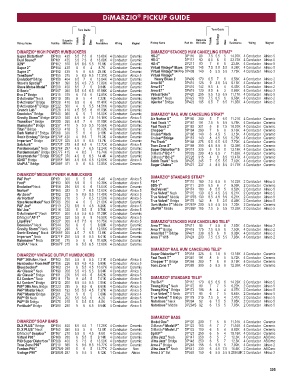

DiMARZIO PICKUP GUIDE
®

Tone Guide Tone Guide

Output in Mid-Range DC Output in Mid-Range DC
Pickup Name Part No. Millivolts Trebble Bass Resistance Wiring Magnet Pickup Name Part No. Millivolts Trebble Bass Resistance Wiring Magnet
DiMARZIO HIGH POWER HUMBUCKERS DiMARZIO STACKED HUM CANCELING STRAT
®
®
®
™
Super Distortion DP100 425 5.5 7.5 8 13.68K 4 Conductor Ceramic HS-2 DP116 90 7.5 5.5 5 14.97K 4 Conductor Alnico 5
®
Dual Sound DP101 425 5.5 7.5 8 13.68K 4 Conductor Ceramic HS-3 DP117 93 6.5 6 6 23.72K 4 Conductor Alnico 5
™
®
X2N ® DP102 510 6.5 6.5 5.5 15.8K 4 Conductor Ceramic HS-4 DP217 93 7 6 6 23.5K 4 Conductor Alnico 5
™
®
Super 2 DP104 425 8 6 4 8.7K 4 Conductor Ceramic Virtual Vintage Blues DP402 145 7.5 5.5 5.5 8.28K 4 Conductor Alnico 5
™
®
Super 3 DP152 435 5 8 6.5 25.8K 4 Conductor Ceramic Virtual Vintage 54 Pro DP408 140 8 5.5 5.5 7.75K 4 Conductor Alnico 2
™
ToneZone DP155 375 5 8.5 8.5 17.31K 4 Conductor Alnico 5 Virtual Vintage ®
®
Evolution Bridge DP159 404 6.5 7 6 13.84K 4 Conductor Ceramic Heavy Blues 2 DP409 170 6.5 7 6 8.53K 4 Conductor Alnico 2
®
Steve‘s Special ™ DP161 390 6.5 4.5 7.5 17.89K 4 Conductor Ceramic Area 58 DP415 125 9 3.5 3.5 6.15K 4 Conductor Alnico 2
™
™
Steve Morse Model DP200 450 6.5 7 5 9.94K 4 Conductor Ceramic Area 61 DP416 142 8.5 4 4 6.43K 4 Conductor Alnico 2
™
D Sonic ™ DP207 390 5.5 6.5 6.5 11.96K 4 Conductor Ceramic Area 67 DP419 120 9.5 4 3 5.86K 4 Conductor Alnico 2
™
™
Evo 2 Bridge DP215 375 6 7.5 6 12.81K 4 Conductor Ceramic Virtual Solo DP420 205 5.5 7.5 6.5 11.17K 4 Conductor Alnico 5
™
™
D Activator Neck DP219 385 8 5 4 7.22K 4 Conductor Ceramic Injector Neck DP422 160 7.5 6.5 6 8.56K 4 Conductor Alnico 2
™
D Activator Bridge DP220 470 6.5 6 6 11.41K 4 Conductor Ceramic Injector Bridge DP423 185 6.5 7 6.5 11.35K 4 Conductor Alnico 2
™
™
D Activator-X Bridge DP222 500 4 6 5.5 14.51K 4 Conductor Ceramic
™
Crunch Lab DP228 410 4.5 5.5 6 11.03K 4 Conductor Ceramic
™
Dominion Bridge DP245 360 6 9 7 16.50K 4 Conductor Ceramic DiMARZIO RAIL HUM CANCELING STRAT ®
™
®
Gravity Storm Bridge DP253 340 4.5 9 7.5 15.19K 4 Conductor Alnico 5 Air Norton S DP180 280 5 7 6.5 11.21K 4 Conductor Ceramic
™
™
Transition Bridge DP255 390 4.5 7 6 11.05K 4 Conductor Ceramic Fast Track 1 DP181 191 7.5 5 5.5 5.78K 4 Conductor Ceramic
™
™
Illuminator Bridge DP257 410 5 5.5 5.5 10.56K 4 Conductor Ceramic Fast Track 2 DP182 321 5 8 7.5 18.07K 4 Conductor Ceramic
™
™
Titan Bridge DP259 418 5 6 5 11.07K 4 Conductor Ceramic Chopper DP184 260 7 6 6 9.16K 4 Conductor Ceramic
™
™
Dark Matter 2 Bridge DP268 330 5 6 6 9.19K 4 Conductor Ceramic Cruiser Neck DP186 140 8 4.5 5 3.13K 4 Conductor Ceramic
™
®
Sonic Ecstasy Bridge DP270F 420 4 8.5 7 15.3K 4 Conductor Ceramic Cruiser Bridge DP187 143 8 4.5 5.5 5.75K 4 Conductor Ceramic
™
®
Imperium Bridge DP272F 325 4.5 8 6.5 13.7K 4 Conductor Ceramic Pro Track DP188 275 5.5 6.5 6.5 7.70K 4 Conductor Ceramic
™
™
Satchur8 DP273F 375 4.5 6.5 6 12.73K 4 Conductor Alnico 8 Tone Zone S DP189 300 4.5 8.5 8 12.39K 4 Conductor Ceramic
™
™
Pandemonium Neck DP276F 297 4.5 7 6.5 12.24K 4 Conductor Ceramic Super Distortion S DP218 325 5 7.5 8 13.18K 4 Conductor Ceramic
™
®
Pandemonium Bridge DP277F 415 4 8.5 7 13.74K 4 Conductor Ceramic DiMarzio BC-1 DP225 290 4.5 6.5 7 11.62K 4 Conductor Ceramic
™
™
®
Dreamcatcher Bridge DP282F 370 4.5 8 6.5 14.4K 4 Conductor Ceramic DiMarzio BC-2 DP226 315 4 8 8.5 13.47K 4 Conductor Ceramic
™
™
®
IGNO Bridge DP285F 385 4.5 6.5 6.5 12.69K 4 Conductor Alnico 8 Satch Track Neck DP425 245 7 5.5 5.5 7.02K 4 Conductor Ceramic
™
™
UtoPIA Bridge DP289F 411 5 6 6.5 12.95K 4 Conductor Ceramic Sugar Chakra DP427 337 4 8.5 8.5 21.77K 4 Conductor Ceramic
™
™
DiMARZIO MEDIUM POWER HUMBUCKERS ® ®
®
PAF Pro DP151 300 6 5 5 8.4K 4 Conductor Alnico 5 DiMARZIO STANDARD STRAT
®
™
Fred DP153 305 5.5 6 5 10.38K 4 Conductor Alnico 5 FS-1 ™ DP110 160 7.5 6.5 6 14.23K 2 Conductor Alnico 5
®
Evolution Neck DP158 294 6.5 6 6 13.04K 4 Conductor Ceramic SDS-1 ™ DP111 200 5.5 6 7 9.36K 2 Conductor Ceramic
®
Norton DP160 352 5 7 6.5 12.62K 4 Conductor Alnico 5 Red Velvet ™ DP174 180 8 5.5 5 8.52K 2 Conductor Alnico 5
®
Air Zone ® DP192 323 5 8.5 8.5 17.49K 4 Conductor Alnico 5 True Velvet Neck DP175 130 8.5 4.5 3.5 6.21K 2 Conductor Alnico 5
™
Air Norton DP193 270 5 7 6.5 12.58K 4 Conductor Alnico 5 True Velvet Middle DP175S 130 8.5 4.5 3.5 6.21K 2 Conductor Alnico 5
®
™
Steve Morse Model Neck DP205 250 4 6 5 21.00K 4 Conductor Ceramic True Velvet Bridge DP176 142 8 5 3.5 6.49K 2 Conductor Alnico 5
™

™
PAF Joe ® DP213 272 6.5 5 4.5 8.26K 4 Conductor Alnico 5 Dark Matter 2 Middle DP267F 200 5.5 4.5 5.5 7.33K 2 Conductor Ceramic
™
Mo’ Joe DP216 320 5 5.5 5 9.76K 4 Conductor Alnico 5 UtoPIA Middle DP288F 185 7.5 5 5.5 13.32K 2 Conductor Alnico 5
™
D Activator-X Neck DP221 300 4.5 5.5 6.5 11.29K 4 Conductor Ceramic
™
DiMarzio AT-1 DP224 320 5.5 8 8 16.50K 4 Conductor Alnico 5
®
™
LiquiFire DP227 300 4.5 7.5 6 10.75K 4 Conductor Alnico 5 DiMARZIO STACKED HUM CANCELING TELE
™
®
®
Dominion Neck DP244 290 6 6 5 8.39K 4 Conductor Ceramic Area T Neck DP417 95 7 5.5 6 7.83K 4 Conductor Alnico 2
™
™
Gravity Storm Neck DP252 290 5 6 6 12.56K 4 Conductor Ceramic Area T Bridge DP418 175 7.5 6.5 6 7.50K 4 Conductor Alnico 2
™
™
Sonic Ecstasy Neck DP269F 300 4.5 7 6.5 13.8K 4 Conductor Ceramic Area Hot T Bridge DP421 238 6.5 6 6 9.33K 4 Conductor Alnico 2
™
™
Imperium Neck DP271F 250 5.5 6 5.5 8.41K 4 Conductor Ceramic Area T 615 DP424 200 7.5 5.5 5.5 7.93K 4 Conductor Alnico 2
™
™
Rainmaker Neck DP281 275 5 6 6 11.62K 4 Conductor Ceramic
™
UtoPIA Neck DP287F 315 6 5.5 6.5 12.68K 4 Conductor Ceramic
™
DiMARZIO RAIL HUM CANCELING TELE ®
®
®
DiMARZIO VINTAGE OUTPUT HUMBUCKERS Super Distortion T DP318 325 5 7.5 8 13.18K 4 Conductor Ceramic
®
™
PAF 36th Ann. Neck DP103 250 5.5 6 5.5 7.31K 4 Conductor Alnico 5 Fast Track T DP381 191 8 5 5 5.72K 4 Conductor Ceramic
™
6
Chopper T Bridge
DP384 260
7
9.19K 4 Conductor Ceramic
6
™
Humbucker From Hell DP156 226 8.5 4.5 4.5 5.89K 4 Conductor Alnico 5 Tone Zone T DP389 300 5 8.5 8 12.39K 4 Conductor Ceramic
®
™
Bluesbucker DP163 224 6 5.5 4.5 10.07K 4 Conductor Ceramic
®
Air Classic Neck DP190 206 5.5 4.5 5.5 8.34K 4 Conductor Alnico 5
™
Air Classic Bridge DP191 226 5.5 4.5 6 8.62K 4 Conductor Alnico 5
™
®
EJ Custom Neck DP211 178 9 4.5 5 7.01K 4 Conductor Alnico 5 DiMARZIO STANDARD TELE ®
™
™
EJ Custom Bridge DP212 200 8.5 4.5 5.5 7.85K 4 Conductor Alnico 5 Pre B-1 DP112 170 6.5 6.5 6 14.23K 2 Conductor Alnico 5
™
™
PAF 36th Ann. Bridge DP223 285 5 6.5 6 8.60K 4 Conductor Alnico 5 Twang King Neck DP172 89 7 7 5 6.22K 2 Conductor Alnico 5
®

™
PAF Master Neck DP260 193 5.5 5.5 4.5 7.37K 4 Conductor Alnico 5 Twang King Bridge DP173 198 8 4 4 8.07K 2 Conductor Alnico 5
®
™
PAF Master Bridge DP261 278 5 6 5 7.69K 4 Conductor Alnico 4 True Velvet T Neck DP177 95 6 7 5 6.64K 2 Conductor Alnico 5
®
PAF 59 Neck DP274 202 5.5 5.5 5 8.2K 4 Conductor Alnico 5 True Velvet T Bridge DP178 215 7.5 5 4 7.41K 2 Conductor Alnico 5
™
®
PAF 59 Bridge DP275 215 5 5.5 5.5 8.5K 1 Conductor Alnico 5 Notorious Neck DP284 92 6 7.5 5 7.85K 2 Conductor Alnico 5
™
®
Fortitude Bridge DP290 290 5 6 6.5 9.54K 4 Conductor Alnico 5 Notorious Middle DP284S 92 6 7.5 5 7.85K 2 Conductor Alnico 5
™
®
DiMARZIO BASS
®
DiMARZIO SOAP BARS Model One DP120 200 7 5 8 11.31K 4 Conductor Ceramic
®
™
DLX PLUS Bridge DP154 400 6.5 4.5 7 17.28K 4 Conductor Ceramic DiMarzio Model P DP122 163 5 7 7 11.54K 4 Conductor Ceramic
®
™
™
DLX PLUS Neck DP162 380 6.5 5 6 13.8K 4 Conductor Ceramic DiMarzio Model J DP123 150 6 5 4 6.82K 4 Conductor Ceramic
™
™
®
DiMarzio Soapbar DP167 270 5.5 6 4.5 8.6K 4 Conductor Ceramic Split P DP127 250 6 5 4 19.16K 4 Conductor Ceramic
™
™
®
Virtual P90 DP169 280 6 5.5 5 9.14K 4 Conductor Ceramic Ultra Jazz Neck DP147 250 6 5 7 12.3K 4 Conductor A5/Crmc
™
™
P90 Super Distortion DP209 400 5 7.5 8 13.50K 4 Conductor Ceramic Ultra Jazz Bridge DP148 250 6 5 7 12.3K 4 Conductor A5/Crmc
™
™
Tone Zone P90 DP210 385 5 8.5 8.5 16.77K 4 Conductor Ceramic Area J Bridge DP248 155 6 5.5 5 7.80K 4 Conductor Alnico 2
™
™
Fantom P90 DP278/9 285 5 6 5 13.77K 2 Conductor Neo Ultra Jazz 5 Neck DP547 230 6 4.5 7.5 16.6K 2 Conductor A5/Crmc
™
™
Vintage P90 DP280/6 287 5 5.5 5 8.12K 1 Conductor Alnico Area J 5 Set DP552 150 6 5.5 5.5 9.32/9.56K 2 Conductor Alnico 2
™
™
